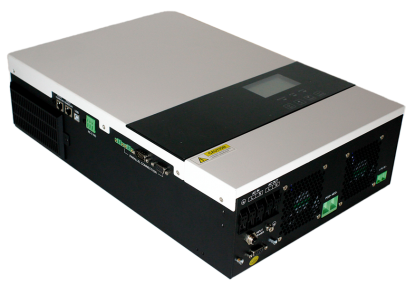

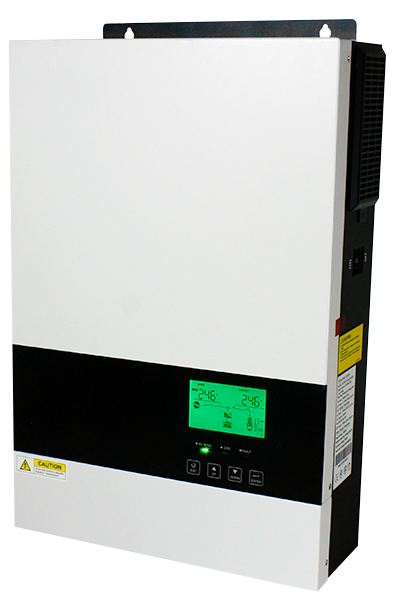

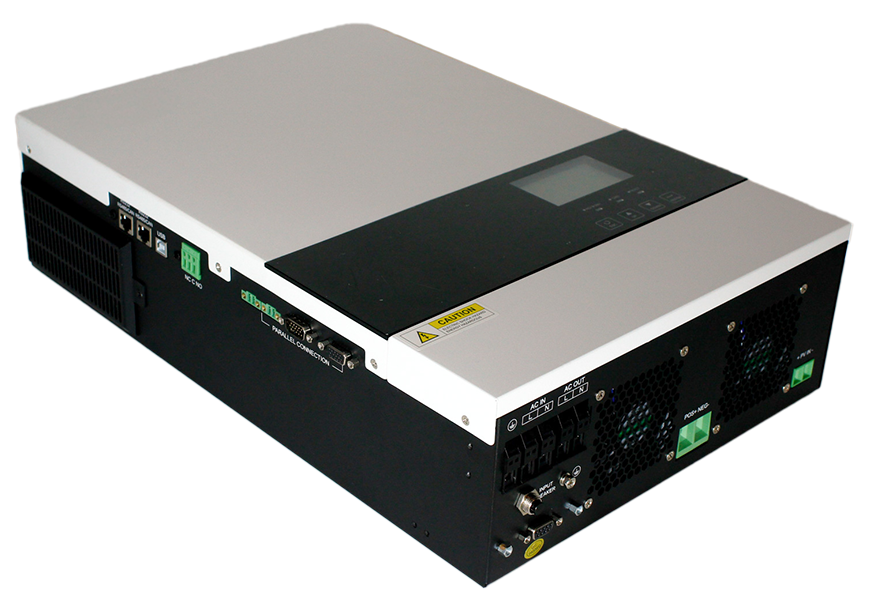

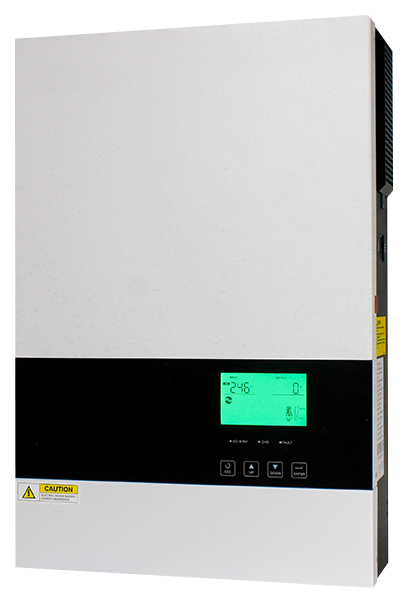

EPD 5500W 48V Hybrid Pure Sine Wave Inverter MPPT, 80A Mains Charger

Only 2 left in stock

Only 2 left in stock

£630.00VAT Included

FREE SHIPPING



Compatibility:

Communicates with Pylontech batteries (via CAN), EVE batteries (with optional CAN interface)

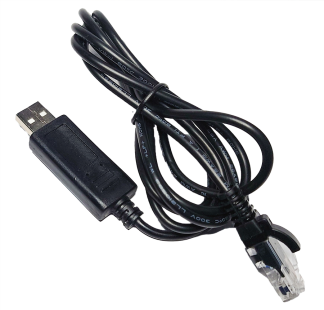

Solar Assistant can be used with this inverter for monitoring only (connect to the USB socket with supplied cable), But there is a good chance that the inverter will reject most setting changes from SolarAssistant and also the official WatchPower or SolarPower app. When investigating one of these units, we confirmed that the firmware the inverter is loaded with does not support changing settings via the communication ports.

This hybrid inverter is also suitable for 48V flooded and sealed GEL/AGM lead-acid batteries with pre-defined charging programs. A user-defined battery type with numerous customisable settings is also available for charging other battery types including Lithium without battery communications.

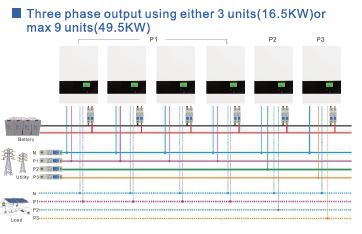

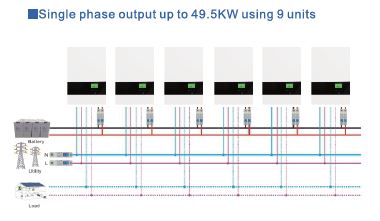

It is possible to parallel 6 units together to increase output, each unit has a built in parallel kit ready to connect up

User Manual

  • This inverter does not feed into the grid
  • Nominal battery voltage: 48V

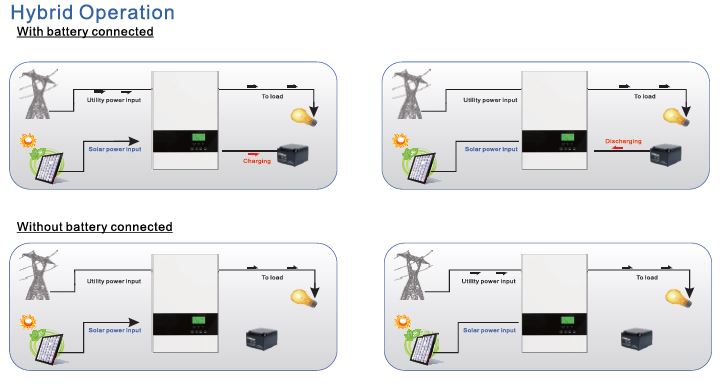

  • Works with or without battery
  • Continuous power output: 5500W / 5500VA (220-240V AC)
  • Surge power: 11000VA
  • Output frequency: 50Hz /60 Hz
  • Output waveform: Pure sine wave
  • Maximum solar input power: 5500W
  • Solar MPPT operating voltage: 120-450V DC
  • Solar PV Nominal range 280-360V DC
  • PV Max input current 20A
  • Maximum solar charging current: 100A
  • Maximum mains AC charging current: 80A
  • Peak efficiency: 93.5%
  • Operating temperature: -10°C to 50°C
  • Size: 550 x 420 x 225 mm
  • Weight: 12.1kg
