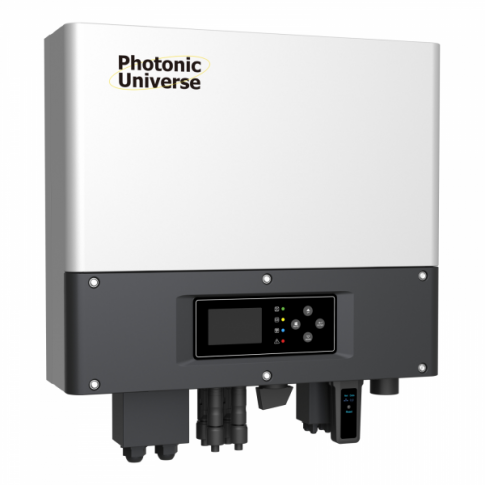

The STG-PH3600-48 is a highly adaptable and efficient 3600W 48V bidirectional grid-tie inverter, designed for photovoltaic (PV) systems with integrated battery storage. It intelligently manages solar energy production to maximise self-consumption, store excess energy in batteries, and feed surplus power into the grid when needed.
This inverter provides a reliable and flexible energy solution, seamlessly balancing energy flow between PV systems, batteries, and the grid to reduce electricity costs and ensure energy independence.
Core Features:
- Bidirectional Energy Flow:
- Automatically balances energy production and consumption.
- Optimises self-consumption by prioritising solar energy and battery usage.
- Draws from the grid only when PV and battery power are insufficient.
- Flexible Operation Modes: The STG-PH3600-48 operates in five distinct modes, offering a tailored solution for every scenario:
- Feed Energy to the Grid: Surplus PV and battery power is exported to the grid.
- Match Load: Powers the loads using PV and/or battery power without grid feed-in.
- Battery Charge: PV or grid energy charges the batteries while also supplying the load.
- Standby: The grid takes over load supply if the inverter encounters a fault.
- Off-Grid: Operates independently of the grid, supplying loads using PV and/or battery power only.
- Dual MPP Trackers: Supports two independent PV arrays for up to 98% solar energy harvesting efficiency.
- IP65 Rated for Outdoor Use: Durable and weather-resistant, this inverter is built to withstand harsh outdoor environments, providing long-lasting performance.
- Wi-Fi Connectivity: Access system settings and monitor energy parameters through the SmartValue mobile app (IOS and Android) for effortless remote management.
Additional features:
- CT Clamp Integration: Enables real-time monitoring of grid energy flow into the house, improving control of battery charge/discharge and maximising self-consumption.
- User-Friendly LCD Display:
- Displays essential system information, including power flow, voltage, and current inputs/outputs.
- Provides intuitive access to configuration settings.
- Peak Power Handling: Supports peak loads of up to 6000VA for 10 seconds, ensuring reliable performance for demanding appliances.
- Fanless design: The fanless design ensures quiet operation while reducing potential maintenance needs.
Who Should Use the STG-PH3600-48?
This grid-tie inverter is ideal for homeowners and businesses looking to:
- Maximise their use of renewable solar energy.
- Minimise reliance on the grid while ensuring power stability.
- Reduce energy costs through intelligent energy management.
Compatibility:
This inverter is suitable for 48V flooded and sealed GEL/AGM lead-acid as well as Lithium batteries, with pre-defined charging programs for each type.
Whether you need reliable off-grid power, grid-tie functionality, or battery backup for energy security, this inverter offers the perfect balance of efficiency, flexibility, and advanced technology.
